Graphs of: y = tan(x), y = cot(x),
y = sec(x) and y = csc(x)
MathBitsNotebook.com

Topical Outline | Algebra 2 Outline | MathBits' Teacher Resources

Terms of Use   Contact Person: Donna Roberts
divider

The graphs of sine and cosine were investigated under Graphs of Sine and Cosine.
It is now time to investigate the remaining four trigonometric functions.
The graphs appearing here will be drawn in radians.

hintgal
When hand-drawing the trigonometric graphs, draw vertical dotted lines at  f intervals to remind you of the connection to the four quadrants from the unit circle and to keep your graphs accurate.
(Such dotted lines will resemble the dashed vertical grid lines in the graphs below.)



bullet Tangent Function:   y = tan x


• One cycle occurs between d and d.
• There are vertical asymptotes at each end of the cycle.  The asymptote that occurs at drepeats every π units.
• period: π
• amplitude:  none, graphs go on forever in vertical directions.

Note:  a graphing utility (such as the one used to produce these graphs) may not show the function approaching infinity (going on forever upward or downward).  The graphs, however, DO tend toward positive and negative infinity and do not STOP.
y = tan x
other91

The graph does not STOP even though the
plot may "appear" as if the graph stops
as the y-values increase/decrease.

dividerdash

bullet Cotangent Function:   y = cot x

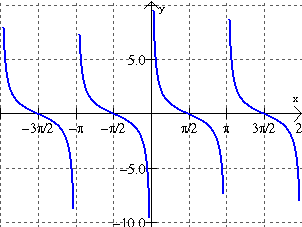

y = cot x
other96

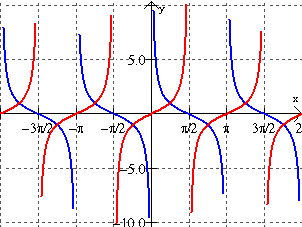

y = cot(x);    y = tan(x)
other97

• One cycle occurs between 0 and π.
• There are vertical asymptotes at each end of the cycle.  The asymptote that occurs at π repeats every πunits.
• period: π
• amplitude:  none, graphs go on forever in vertical directions
• The x-intercepts of the graph of y = tan(x) are the asymptotes of the graph of y = cot(x).
• The asymptotes of the graph of y = tan(x) are the
x-intercepts of the graph of y = cot(x).
• The graphs of  y = tan(x) and  y = cot(x) have the same x-values for y-values of 1 and -1.

Note:  The graphs of y = tan(x) and  y = cot(x) "face" in opposite directions.

dividerdash

bullet Cosecant Function:   y = csc x

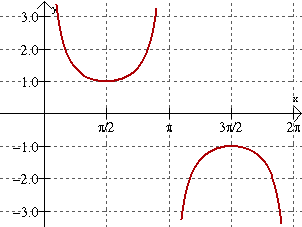

y = csc xotherg1

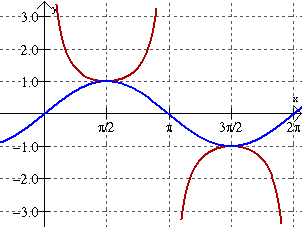

y = csc(x);    y = sin(x)
otherg2

• There are vertical asymptotes.  The asymptote that occurs at π repeats every π units.
• period: 2π
• amplitude:  none, graphs go on forever in vertical directions.
• The maximum values of y = sin x are minimum values of the positive sections of y = csc x.  The minimum values of y = sin x are the maximum values of the negative sections of y = csc x.
• The x-intercepts of y = sin x are the asymptotes for
y = csc x.

Note:  The U shapes of the cosecant graph are tangent to its reciprocal function, sine, at sine's max and min locations.


dividerdash

bullet Secant Function:   y = sec x

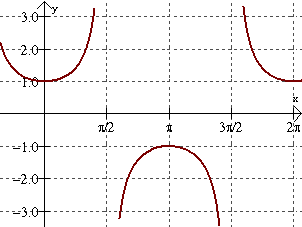

y = sec x
other5

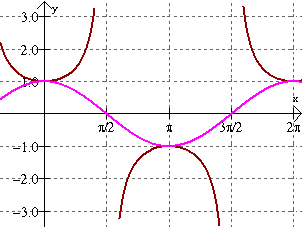

y = sec(x);    y = cos(x)
other6

• There are vertical asymptotes.  The asymptote that occurs at ss repeats every π units.
• period: 2π
• amplitude:  none, graphs go on forever in vertical directions.
• The maximum values of y = cos x are minimum values of the positive sections of y = sec x.  The minimum values of y = cos x are the maximum values of the negative sections of y = sec x.
• The x-intercepts of y = cos x are the asymptotes for
y = sec x.

Note:  the U shapes of the secant graph are tangent to its reciprocal function, cosine, at cosine's max and min locations.


dividerdash

ti84c
How to use your graphing calculator for graphing trig functions.
click here.
